Series 3

From 1979 to 1992

By 1977 Jaguar needed to refresh the XJ so for the first time in their history, they went to an outside styling house Pininfarina to re-design the basic structure which entailed new lighting, impact absorbing bumpers, a larger glass area, flush mounted door handles and more changes to the interior - the Series 3 model was born. Produced in all engine sizes, Daimler and Jaguar but now only in long wheelbase form, the Series 3 revitalised sales while Jaguar was working on the design of an entirely new car for its replacement.

The 6-cylinder XJ6 Series 3 remained in production until 1987, the V12 Jaguar until 1991 and the Daimler Double Six until 1992, after which nearly three quarters of a million XJs had been produced.

Model Summary

Model Type:

XJ Saloons

Production Dates:

1979 - 1992

Engine Range:

3.4 Litre Series 3 Saloon

4.2 Litre Series 3 Saloon

5.3 Litre Series 3 Saloon

0 - 60 mph:

3.4 Litre Series 3 Saloon - 10.9 seconds

4.2 Litre Series 3 Saloon - 10.5 seconds

5.3 Litre Series 3 Saloon - 7.8 seconds (note all specs are for pre HE models)

Top Speed:

3.4 Litre Series 3 Saloon - 117 mph

4.2 Litre Series 3 Saloon - 128 mph

5.3 Litre Series 3 Saloon - 147 mph

Series 3 Technical Specifications

Technical Information

Engine Statistics

 3.4 Litre Series 3 Saloon
Engine (cc)3442
Bore and Stroke (mm)83 x 106
Compression Ratio8.8:1
BHP161
@ RPM5000
Torque (lb ft)189
@ RPM3500
Fuelling2x SU carbs
 4.2 Litre Series 3 Saloon
Engine (cc)4235
Bore and Stroke (mm)97.07 x 106
Compression Ratio8:1
BHP200
@ RPM5000
Torque (lb ft)236
@ RPM2750
FuellingFuel-injection
 5.3 Litre Series 3 Saloon
Engine (cc)5343
Bore and Stroke (mm)90 x 70
Compression Ratio9:1
BHP285
@ RPM5750
Torque (lb ft)294
@ RPM3500
FuellingFuel-injection

Engine Performance

 3.4 Litre Series 3 Saloon
Top Speed117 mph
0 - 60 mph10.9 seconds
Fuel Consumption16.7 mpg
 4.2 Litre Series 3 Saloon
Top Speed128 mph
0 - 60 mph10.5 seconds
Fuel Consumption15.7 mpg
 5.3 Litre Series 3 Saloon
Top Speed147 mph
0 - 60 mph7.8 seconds (note all specs are for pre HE models)
Fuel Consumption13.2 mpg

Model Specifications

 3.4 Litre Series 3 Saloon
Transmission5-speed all synchro
Wheel Size (in)15, steel
Suspension (Front)Ind semi-trailing wishbones, coil springs, anti-roll bar
Suspension (Rear)Ind lower wishbones/upper driveshaft link, radius arms, coil springs
Brakes4 wheel disc, rear inboard
 4.2 Litre Series 3 Saloon
Transmission5-speed all synchro BW 3-speed auto
Wheel Size (in)15, steel Later alloys
Suspension (Front)Ind semi-trailing wishbones, coil springs, anti-roll bar
Suspension (Rear)Ind lower wishbones/upper driveshaft link, radius arms, coil springs
Brakes4 wheel disc, rear inboard
 5.3 Litre Series 3 Saloon
TransmissionGM 3-speed auto BW 3-speed auto
Wheel Size (in)15, steel or alloys
Suspension (Front)Ind semi-trailing wishbones, coil springs, anti-roll bar
Suspension (Rear)Ind lower wishbones/upper driveshaft link, radius arms, coil springs
Brakes4 wheel disc, rear inboard

Model Dimensions

 3.4 Litre Series 3 Saloon
Length (in)194.75
Width (in)69.25
Height (in)54
Wheelbase (in)112.75
Front Track (in)58
Rear Track (in)58.5
Weight (Cwt)34
 4.2 Litre Series 3 Saloon
Length (in)194.75
Width (in)69.25
Height (in)54
Wheelbase (in)112.75
Front Track (in)58
Rear Track (in)58.5
Weight (Cwt)35.4
 5.3 Litre Series 3 Saloon
Length (in)194.75
Width (in)69.25
Height (in)54
Wheelbase (in)112.75
Front Track (in)58
Rear Track (in)58.5
Weight (Cwt)36

Optional Extras

All Models

  • Under-bumper fog/spot lights
  • Halogen headlights
  • Air-conditioning (standard on Vanden Plas from 1975)
  • Rear seat belts (standard on Vanden Plas from 1975)
  • Sundym tinted glass (standard on Vanden Plas and all V12s from 1976 and all models from 1978)
  • Drivers door mirror (standard on Vanden Plas)
  • Mud flaps
  • Witter tow bar

3.4 Litre Series 3 Saloon

  • Heated rear screem
  • Overdrive for manual gearbox
  • Automatic transmission
  • Electrically operated windows
  • Rear seat belts
  • Laminated windscreen
  • Radio and/or radio/cassette system with electric aerial
  • Wing mirrors
  • Front seat headrests
  • Leather upholstery

4.2 Litre Series 3 Saloon

  • Overdrive for manual gearbox
  • Automatic transmission
  • Radio and/or radio/cassette system with electric aerial (standard on Vanden Plas)
  • Kent alloy wheels
  • Whitewalll tyres
  • Rear seat headrests (only on Vanden Plas)
  • Limited-slip differential
  • Cloth upholstery

5.3 Litre Series 3 Saloon

  • Choice of two radio and radio/cassette systems with electric aerial (standard on Vanden Plas and from 1976 on DD6 coupe)
  • Kent alloy wheels
  • Whitewall tyres
  • Limited-slip differential
  • Cloth upholstery

Series 3 Events

Header Image

The Jaguar Enthusiast' Club visit Hull in September.  For the first time, alongside a car show, we have a series of seminars on a range of topics including parts advice from SNG Barratt, oils from Millers Oils plus Jaguar memorabil...

The Jaguar Enthusiast' Club visit Hull in September.  For the first time, alongside a car show, we have a series of seminars on a r...

Mark Russell And Mark Gordon Cg

A day of classic racing at one of the best circuits in the UK. Join hundreds of car clubs and displays as well as get up close to racing legends.

A day of classic racing at one of the best circuits in the UK. Join hundreds of car clubs and displays as well as get up close to racing legends.

Series 3 News

Cadwell Park Adam Powderham Pursues The Mid Field Pack

This 2.2 mile Parkland circuit is wonderful when dry but in the wet, with a grid full of Jaguars? A totally different story. Arriving on Friday for free practice, it was pouring & extremely slippery.

This 2.2 mile Parkland circuit is wonderful when dry but in the wet, with a grid full of Jaguars? A totally different story. Arriving on Friday for free practice, it was pouring & extremely slippery.

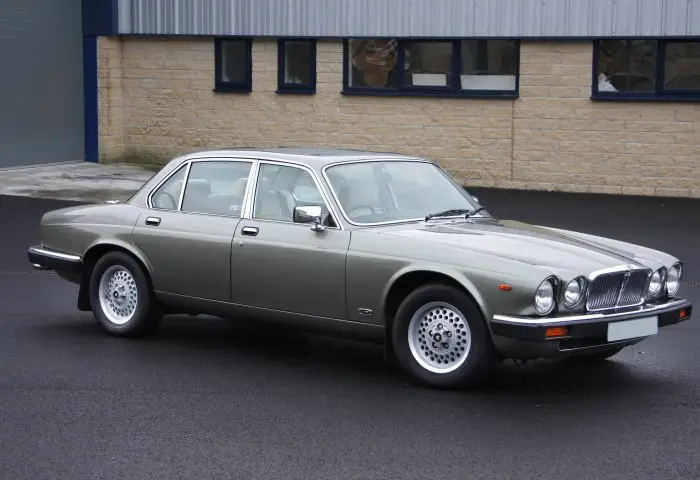

Jaguar Xj6 Series 3 Sovereign
