Production started: 2014

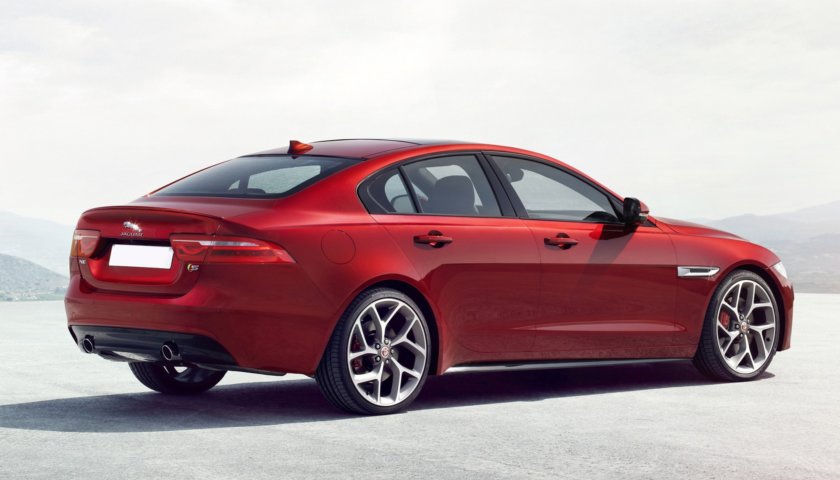

Jaguar’s eventual replacement for the small sized X-type saloon was introduced with an entirely new range of small capacity high efficiency engines. Aimed at capturing a larger share of the market place from its rivals BMW, the XE eventually will encompass a much larger range of models.

The newest Jaguar saloon range at the time of writing, the XE sees the brand return to a range of smaller executive four-door saloons based around the coupe saloon styling ethos, first seen in the medium sized XF.

A body shell of nearly all aluminium, the XE is offered with a range of Ingenium 4-cylinder petrol and diesel engines as well as the top of the range 3.0 litre petrol engine first seen in the F-TYPE sports car. Available in four levels of trim, with all wheel drive on some models, the XE offered excellent performance with superb economy, built at a new factory in Solihull with engines made in Jaguar Land Rover’s other new factory in Wolverhampton.

Model Summary

Model Type:

XE Saloons

Production Dates:

Started: 2014

Engine Range:

2.0 Litre Diesel (163PS)

2.0 Litre Diesel (180PS) 2 and AWD

2.0 Litre (200PS)

2.0 Litre (240PS)

3.0 Litre (340PS)

0 - 60 mph:

2.0 Litre Diesel (163PS) - 7.9 seconds (manual) 7.7 (auto)

2.0 Litre Diesel (180PS) 2 and AWD - 7.9 seconds (manual) 7.4 (auto) 7.5(AWD)

2.0 Litre (200PS) - 7.1 seconds

2.0 Litre (240PS) - 6.5 seconds

3.0 Litre (340PS) - 4.9 seconds

Top Speed:

2.0 Litre Diesel (163PS) - 132 mph

2.0 Litre Diesel (180PS) 2 and AWD - 140 mph

2.0 Litre (200PS) - 147 mph

2.0 Litre (240PS) - 155 mph

3.0 Litre (340PS) - 155 mph

XE Saloons Technical Specifications

Technical Information

Engine Statistics

  2.0 Litre Diesel (163PS)
Engine (cc) 1999
Bore and Stroke (mm) 83 x 92.4
Compression Ratio 15.5:1
BHP 163PS
@ RPM 4000
Torque (lb ft) 280
@ RPM 2500
Fuelling Common rail fuel-injection
  2.0 Litre Diesel (180PS) 2 and AWD
Engine (cc) 1999
Bore and Stroke (mm) 83 x 92.4
Compression Ratio 15.5:1
BHP 180PS
@ RPM 4000
Torque (lb ft) 317
@ RPM 2500
Fuelling Common rail fuel-injection
  2.0 Litre (200PS)
Engine (cc) 1999
Bore and Stroke (mm) 87.5 x 83.1
Compression Ratio 10:1
BHP 200PS
@ RPM 5500
Torque (lb ft) 206
@ RPM 4000
Fuelling Common fuel-injection
  2.0 Litre (240PS)
Engine (cc) 1999
Bore and Stroke (mm) 87.5 x 83.1
Compression Ratio 10:1
BHP 240PS
@ RPM 5500
Torque (lb ft) 250
@ RPM 4000
Fuelling Common fuel-injection
  3.0 Litre (340PS)
Engine (cc) 2995
Bore and Stroke (mm) 84.5 x 89
Compression Ratio 10.5:1
BHP 340
@ RPM 6500
Torque (lb ft) 332
@ RPM 4500
Fuelling Fuel-injection

Engine Performance

  2.0 Litre Diesel (163PS)
Top Speed 132 mph
0 - 60 mph 7.9 seconds (manual) 7.7 (auto)
Fuel Consumption 75 mpg
  2.0 Litre Diesel (180PS) 2 and AWD
Top Speed 140 mph
0 - 60 mph 7.9 seconds (manual) 7.4 (auto) 7.5(AWD)
Fuel Consumption 67 mpg, 60.6 (AWD)
  2.0 Litre (200PS)
Top Speed 147 mph
0 - 60 mph 7.1 seconds
Fuel Consumption 38 mpg
  2.0 Litre (240PS)
Top Speed 155 mph
0 - 60 mph 6.5 seconds
Fuel Consumption 38 mpg
  3.0 Litre (340PS)
Top Speed 155 mph
0 - 60 mph 4.9 seconds
Fuel Consumption 34.9 mpg

Model Specifications

  2.0 Litre Diesel (163PS)
Transmission 6-speed manual 8-speed ZF 8HP45 automatic
Wheel Size (in) 17, 20
Suspension (Front) Double wishbone
Suspension (Rear) Integral link
Brakes 4-wheel discs
  2.0 Litre Diesel (180PS) 2 and AWD
Transmission 6-speed manual (not AWD) 8-speed ZF 8HP45 automatic
Wheel Size (in) 17, 20
Suspension (Front) Double wishbone
Suspension (Rear) Integral link
Brakes 4-wheel discs
  2.0 Litre (200PS)
Transmission 8-speed ZF 8HP45 automatic
Wheel Size (in) 17, 20
Suspension (Front) Double wishbone
Suspension (Rear) Integral link
Brakes 4-wheel discs
  2.0 Litre (240PS)
Transmission 8-speed ZF 8HP45 automatic
Wheel Size (in) 17, 20
Suspension (Front) Double wishbone
Suspension (Rear) Integral link
Brakes 4-wheel discs
  3.0 Litre (340PS)
Transmission 8-speed auto
Wheel Size (in) 19, 20in
Suspension (Front) Double wishbone
Suspension (Rear) Integral link
Brakes 4-wheel discs

Model Dimensions

  2.0 Litre Diesel (163PS)
Length (in) 184
Width (in) 81.6
Height (in) 55.7
Wheelbase (in) 111.6
Front Track (in) 63.2
Rear Track (in) 63.3
Weight (Cwt) 29.0 (manual) 29.5 (auto)
  2.0 Litre Diesel (180PS) 2 and AWD
Length (in) 184
Width (in) 81.6
Height (in) 55.7
Wheelbase (in) 111.6
Front Track (in) 63.2
Rear Track (in) 63.3
Weight (Cwt) 30.5 (man) 30.8 (auto) 32.7 (AWD)
  2.0 Litre (200PS)
Length (in) 184
Width (in) 81.6
Height (in) 55.7
Wheelbase (in) 111.6
Front Track (in) 63.2
Rear Track (in) 63.3
Weight (Cwt) 30.1
  2.0 Litre (240PS)
Length (in) 184
Width (in) 81.6
Height (in) 5.7
Wheelbase (in) 111.6
Front Track (in) 63.2
Rear Track (in) 63.3
Weight (Cwt) 1535 kg
  3.0 Litre (340PS)
Length (in) 184
Width (in) 81.6
Height (in) 55.7
Wheelbase (in) 111.6
Front Track (in) 63.2
Rear Track (in) 63.3
Weight (Cwt) 32.8

Optional Extras

  • Chrome front splitter and body coloured poiler
  • Satin chrome front splitter, body-coloured spoiler
  • Sports rear valance
  • Chrome grille
  • Gloss black grille
  • Bi-function xenon headlights
  • Gloss black side vents
  • Gloss black R-Sport side vents
  • Carbon fibre side vents
  • Carbon fibre mirror covers
  • Chrome mirror covers
  • Gloss back mirror covers
  • Powered fold back mirrors
  • Heated front windscreen
  • Privacy glass
  • Luxury loadspace carpet mat
  • Luxury interior carpet mats
  • Stainless steel Sport pedal covers
  • R-Sport branded multi-function steering wheel in soft grain leather with highlights
  • Leather topped gear selector
  • Illuminated sill tread plates
  • Personalised illuminated sill tread plates
  • Union Jack sill tread plates
  • Aluminium gear shift paddles
  • Jaguar branded wheel nut set (black or chrome)
  • Stylised wheel nut sets - Union Jack/Jaguar logo/Black Jack/R logo
  • Rear parking sensors
  • Garage door opener
  • Child seat
  • Snow sock traction aid
  • Snow traction system
  • Surfboard/sailboard holder
  • Ski holder
  • Sport roof box
  • Large sport roof box
  • Large sport roof box with ski inserts
  • Ski bag
  • Roof mounted bike carrier
  • Fork mounted bike carrier
  • Universal lift and load system
  • Tow bar bike carrier
  • iPad holder
  • Sunshades
  • Heated steering wheel
  • Premium seatback storage
  • Roof luggage box
  • Roof cross bars
  • Tow bar system
  • Front windscreen sunshades
  • Luggage compartment nets
  • Collapsible boot organiser
  • Centre armrest chiller
  • Seatback storage
  • Headrest mounted coat hanger
  • WhiteFire headphones
  • First aid kit
  • Front and rear mud flaps
  • Rechargeable torch and dock
  • Protective second row seat cover
  • Bumper protector
  • Space saver spare wheel
  • Jaguar tyre repair system
  • All weather car cover
  • Battery conditioner
  • Panoramic sunroof
  • Smoker's Pack
  • Smoking receptacle
  • Lighter
