Mark IX

From 1959 to 1961

The last development of this model range came in 1959 with the introduction of the Mark IX. Looking exactly the same as the Mark VIII, there were major enhancements to performance and safety. Fitted with a larger 3.8 litre XK engine and with all round disc brakes and power assisted steering, the model stayed in production until 1961.

Model Summary

Model Type:

Mark VII to IX Saloons

Production Dates:

1959 - 1961

Engine Range:

Mark IX 3.8 Litre Saloon

0 - 60 mph:

11.3 seconds

Top Speed:

114.3 mph

Mark IX Technical Specifications

Technical Information

Engine Statistics

  Mark IX 3.8 Litre Saloon
Engine (cc) 3781
Bore and Stroke (mm) 87 x 106
Compression Ratio 8:1 (7:1/9:1 optional), 9:1 'S'
BHP 220
@ RPM 5500
Torque (lb ft) 240
@ RPM 3000
Fuelling 2x SU carbs

Engine Performance

  Mark IX 3.8 Litre Saloon
Top Speed 114.3 mph
0 - 60 mph 11.3 seconds
Fuel Consumption 13.5 mpg

Model Specifications

  Mark IX 3.8 Litre Saloon
Transmission 4-speed (3 synchro) BW 3-speed auto
Wheel Size (in) 16, steel
Suspension (Front) Ind wishbone, torsion bar
Suspension (Rear) Live axle, leaf springs
Brakes 4-wheel disc

Model Dimensions

  Mark IX 3.8 Litre Saloon
Length (in) 196.5
Width (in) 73
Height (in) 63
Wheelbase (in) 120
Front Track (in) 56.5
Rear Track (in) 58
Weight (Cwt) 32.5

Optional Extras

  • Fitted luggage (available from several sources)
  • Choice of Radiomobile radios with fitting kits
  • Underbody steel shield for adverse road conditions
  • Dunlop racing tyres
  • High-lift camshafts
  • C-type cylinder head
  • 2in H8 SU carburettors
  • Close-ratio gearbox
  • Chrome wheel rimbellishers for wheels
  • Dunlop Road Speed whitewall tyres
  • Sundym tinted windscreen
  • Thornton Powr-Lok differential
  • Chrome badge bar
  • Radiator blind
  • High-ratio steering box
  • Wing mirrors
  • Witter tow bar
  • Ace Turbo wheel trims

Chassis Numbers

Model Driver Side Chassis No. Commenced Number made
MK lX Saloon RHD 770001 5984
MK lX Saloon LHD 790001 4021

Mark IX Events

Lcconline

The London Classic Car Show is the must attend event for any discerning classic car owner, collector, expert or enthusiast. Bringing together an international celebration of the very best dealers, manufacturers, car clubs and products.

The London Classic Car Show is the must attend event for any discerning classic car owner, collector, expert or enthusiast. Bringing together an international celebration of the very best dealers, manufacturers, car clubs and products.

Pcrs Logo

The Restoration Show returns for its 5th year and we return with more advice and demonstrations that you may face restoring or maintaining your Jaguar. ...

The Restoration Show returns for its 5th year and we return with more advice and demonstrations that you may face restoring or maintaining your Jag...

Mark IX News

Cadwell Park Adam Powderham Pursues The Mid Field Pack

This 2.2 mile Parkland circuit is wonderful when dry but in the wet, with a grid full of Jaguars? A totally different story. Arriving on Friday for free practice, it was pouring & extremely slippery.

This 2.2 mile Parkland circuit is wonderful when dry but in the wet, with a grid full of Jaguars? A totally different story. Arriving on Friday for free practice, it was pouring & extremely slippery.

2015 Championship Main Image

There can be no nicer circuit than Oulton Park on a warm sunny day & that's what we woke up to. This was the final round of the championship with so much to win (or lose) for both class points & the overall championship.

There can be no nicer circuit than Oulton Park on a warm sunny day & that's what we woke up to. This was the final round of the championship with so much to win (or lose) for both class points & the overall championship.

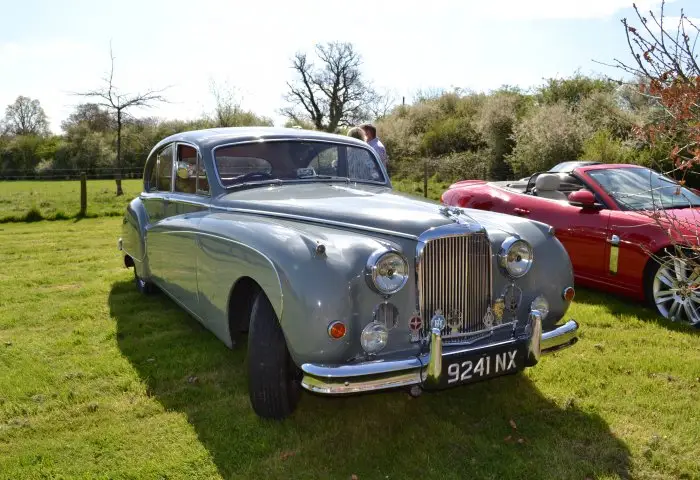

Dsc 0474

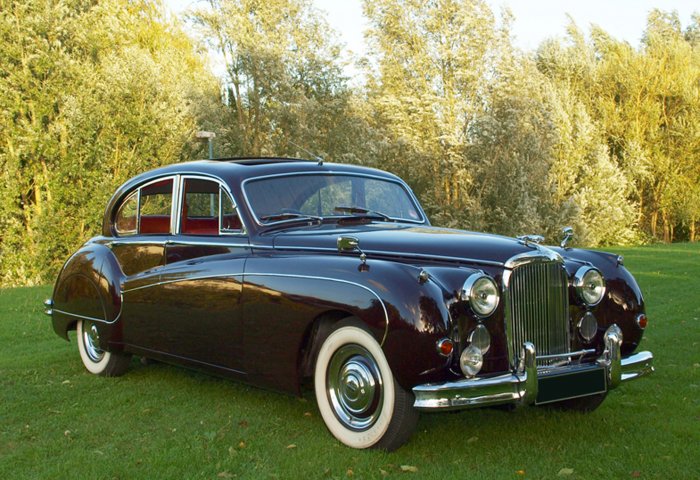

Mark Viii Ix
